"Give someone state and they'll have a bug one day, but teach them how to represent state in two separate locations that have to be kept in sync and they'll have bugs for a lifetime." -ryg

A Lua/Luau port of Dear ImGui (docking branch, 1.93 WIP). Roblox is the primary target (rendered with EditableImages); the same sources also run on LÖVE (LuaJIT, GPU renderer), and the backend layout leaves room for more. It follows the C++ source function by function, so upstream documentation, examples and the demo apply almost directly.

The Pitch - Usage - How it works - Demo - Getting Started & Integration - Backends
Differences from C++ - Performance - Testing - Not ported yet
FAQ - Credits - License

The Pitch

Dear ImGui is a bloat-free graphical user interface library. It outputs optimized vertex buffers that you can render anytime in your application. It is fast, portable, renderer agnostic, and self-contained.

Dear ImGui is designed to enable fast iterations and to empower programmers to create content creation tools and visualization / debug tools (as opposed to UI for the average end-user). It favors simplicity and productivity toward this goal and lacks certain features commonly found in more high-level libraries.

This port brings that to Roblox (and LÖVE): debug overlays, admin panels, in-game editors, profilers and dev tools, written as plain Luau code with no Instances to create, parent or clean up. It includes docking, tables, multiple fonts, the full Style Editor, the Metrics/Debugger window and the complete demo.

Usage

The core of Dear ImGui is a set of files with no dependencies, plus one platform backend from backends/. tools/bundle.py combines them into a single file: build/ImGui.luau (ModuleScript, Roblox backend) or, with --target love, build/imgui_love.lua (LÖVE backend). Your UI code is the same for both.

Dear ImGui is immediate mode: you call widget functions every frame, and their return values tell you what the user did. There is no widget object to keep in sync with your state.

Code:

ImGui.Text("Hello, world %d", 123)
if ImGui.Button("Save") then
    MySaveFunction()
end
ImGui.InputText("string", buf, 256)          -- buf = ImGui.NewTextBuffer("...", 256)
f = ImGui.SliderFloat("float", f, 0.0, 1.0)

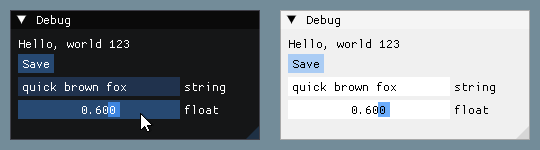

Result:

(settings: Dark style (left), Light style (right) / Font: ProggyClean, 13px)

Code:

-- Create a window called "My First Tool", with a menu bar.
my_tool_active = ImGui.Begin("My First Tool", my_tool_active, ImGuiWindowFlags.MenuBar)
if ImGui.BeginMenuBar() then
    if ImGui.BeginMenu("File") then
        if ImGui.MenuItem("Open..", "Ctrl+O") then --[[ Do stuff ]] end
        if ImGui.MenuItem("Save", "Ctrl+S") then --[[ Do stuff ]] end
        if ImGui.MenuItem("Close", "Ctrl+W") then my_tool_active = false end
        ImGui.EndMenu()
    end
    ImGui.EndMenuBar()
end

-- Edit a color stored as 4 floats
ImGui.ColorEdit4("Color", my_color)

-- Generate samples and plot them
for n = 1, 100 do samples[n] = math.sin((n - 1) * 0.2 + ImGui.GetTime() * 1.5) end
ImGui.PlotLines("Samples", samples, nil, 100)

-- Display contents in a scrolling region
ImGui.TextColored(ImVec4(1, 1, 0, 1), "Important Stuff")
ImGui.BeginChild("Scrolling")
for n = 0, 49 do ImGui.Text("%04d: Some text", n) end
ImGui.EndChild()
ImGui.End()

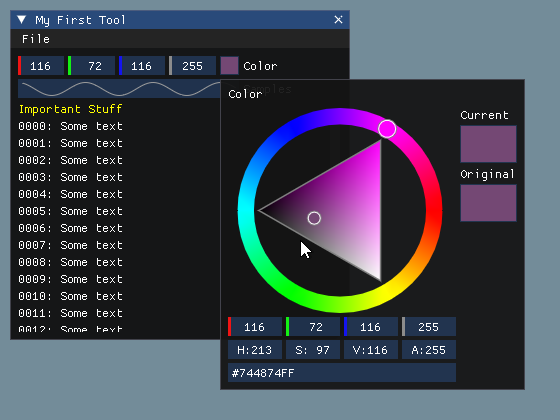

Result:

Dear ImGui allows you to create elaborate tools as well as very short-lived ones. On the extreme side of short-livedness: using the Edit&Continue-friendly nature of immediate mode, you can add a slider to tweak a value in one line and remove it again a minute later.

Every snippet in this README is run by tools/test/scripts/t_readme.luau, and every image was rendered by this port with tools/screenshots/make.py.

How it works (Roblox backend)

Dear ImGui itself never draws anything: every frame it produces ImDrawData, a list of textured, coloured triangles plus clip rectangles, and expects the backend to put them on screen. On desktop that is a few GPU draw calls. Roblox has no API to draw arbitrary triangles in 2D, so the Roblox backend (backends/imgui_impl_roblox.lua) does what a GPU would do, in Luau, and pushes the result into EditableImages.

Why software rasterization? The alternatives don't fit Dear ImGui:

One GUI Instance per widget/shape (what most Roblox UI libraries do) means re-creating, re-parenting or diffing thousands of Instances every frame, can't express anti-aliased curves, per-vertex gradients or font-atlas glyphs, and would no longer be Dear ImGui's renderer output.
Rasterizing the draw data keeps the output identical to Dear ImGui's: the same fonts, anti-aliasing, rounding and gradients, and every widget (including custom ImDrawList drawing) works without backend support.

The cost is CPU time in Luau, so the backend is built around not drawing:

Layers per window. Every draw list (one per top-level window, popup, tooltip) gets its own Frame with ZIndex following Dear ImGui's draw order. Its content is rasterized relative to the window, so moving a window only changes the Frame's Position; no pixel is redrawn or uploaded.
Tiles. Each layer is covered by 128×128 EditableImage tiles (ImageLabels). Every primitive is hashed (positions relative to the layer, UVs, colours, texture, clip) into the tiles it touches. Only tiles whose hash changed are re-rasterized and uploaded, and only the dirty region of those (WritePixelsBuffer with a sub-rectangle). A static UI uploads nothing.
Scrolling reuses pixels. Window content is a separate layer inside a ClipsDescendants frame sized to the window's visible area, positioned at the scroll offset. Scrolling moves it like dragging moves a window; only rows entering view are drawn. Decorations (title bar, borders, scrollbar) stay in their own layers.
Skipping unchanged windows. Vertices are stored in a flat Luau buffer (36 bytes each) instead of tables. Before any per-tile work, a window's raw vertex/index bytes are compared with last frame's; if identical, its layers are just restacked.
Fast rasterizer. @native functions; axis-aligned quads (most rects and every glyph) take a span-fill path, flat rows are copied instead of re-blended, gradient rects (color pickers) are filled per row, and only real triangles (anti-aliased edges, curves) use the generic edge-function rasterizer.
Render rate. Tiles update at most SetRenderRate(hz) times per second (default 60), optionally lower while scrolling/resizing (SetBusyRenderRate). Your UI code and Dear ImGui's logic still run every frame, so input is never dropped.

Input. Mouse and keys come from UserInputService. While the mouse is over Dear ImGui (io.WantCaptureMouse), the tiles are Active, so clicks and the wheel don't reach the game (camera zoom). Games can't read the clipboard, so while a text field is active a hidden TextBox holds focus: the OS delivers typing (any layout), paste and copy/cut through it, and its text mirrors Dear ImGui's current selection. Fonts are TTFs rasterized by the ported stb_truetype into the font atlas, which becomes a backend texture like any image (CreateTexture works for your own pixels too).

Instances inside windows. The backend can place your own Instances (e.g. a ViewportFrame) inside a window's layer, so they stack, clip and move with it; see the ImGui.Embed widget in examples/example_roblox/main.client.luau.

Demo

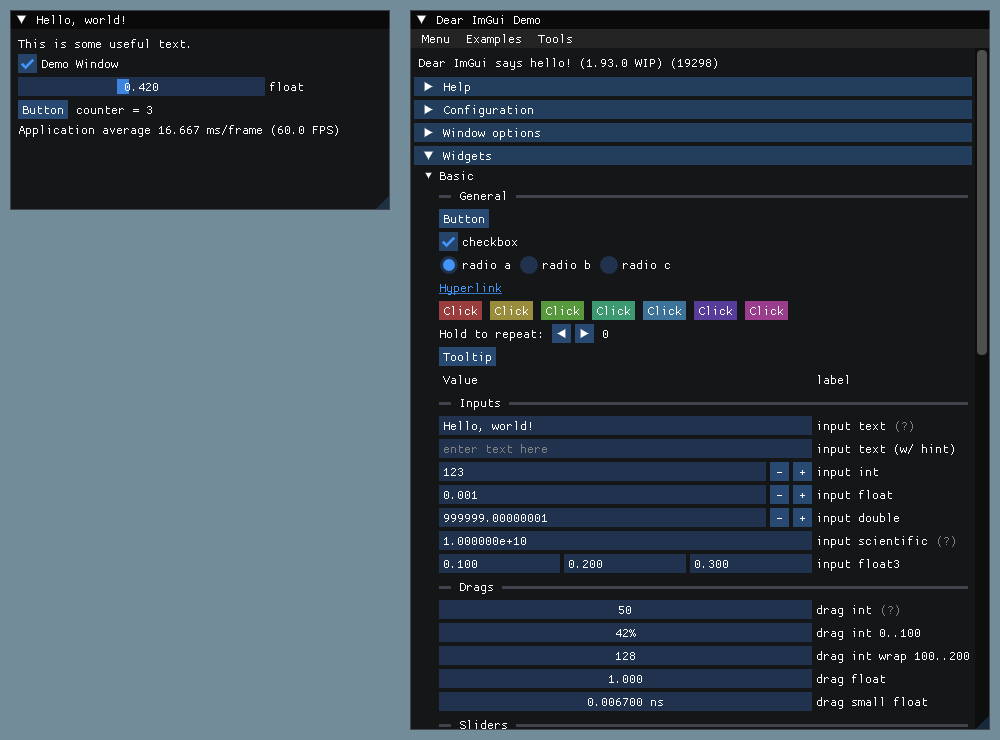

Calling ImGui.ShowDemoWindow() creates a demo window that showcases a variety of features and examples. The code is in imgui_demo.lua, like upstream's imgui_demo.cpp. It's strongly recommended to keep it at hand as a reference: you can find the code for any widget you see by searching for its label.

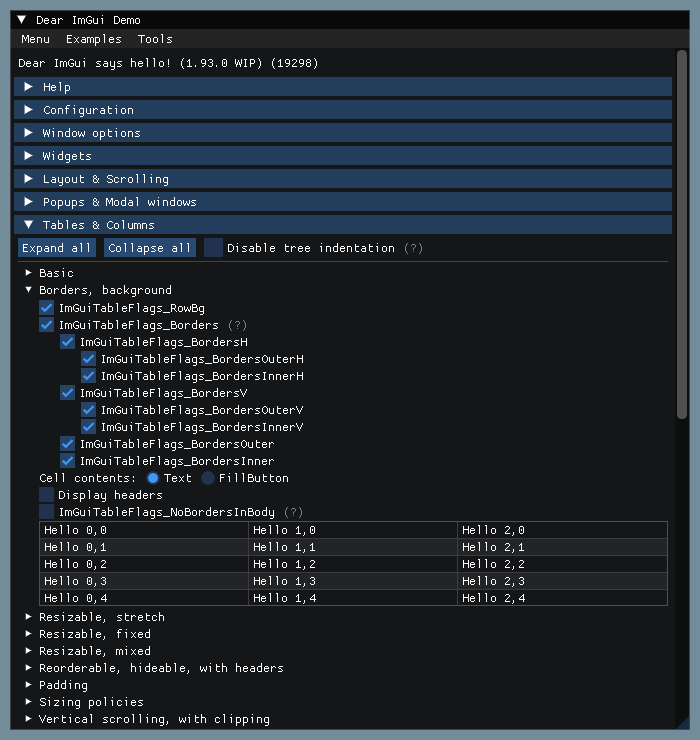

Tables, with sorting, resizing, reordering, borders and row backgrounds:

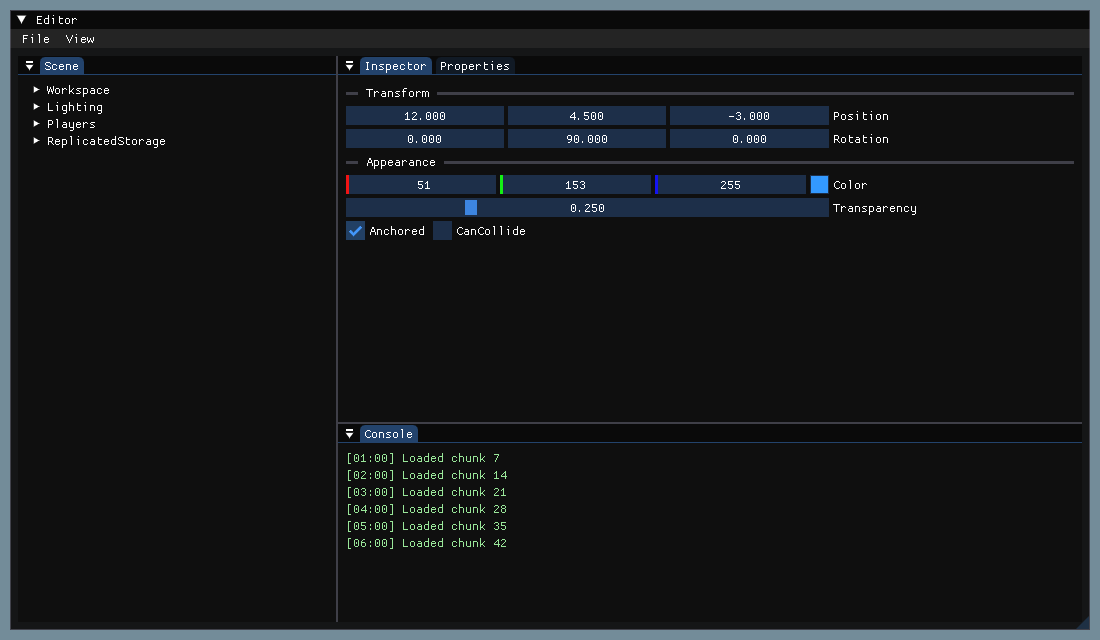

Docking (io.ConfigFlags |= ImGuiConfigFlags.DockingEnable):

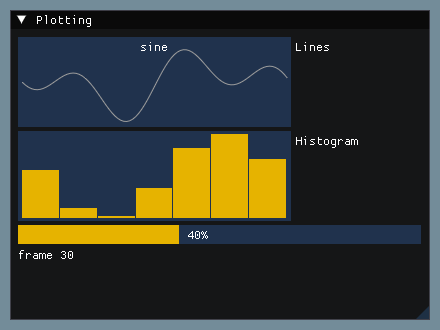

Plotting:

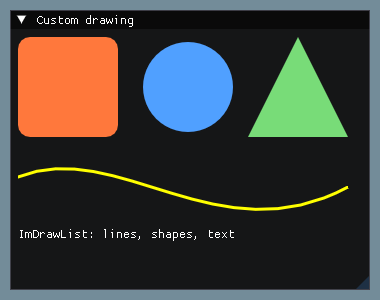

Custom drawing with ImDrawList:

local draw_list = ImGui.GetWindowDrawList()
local p = ImGui.GetCursorScreenPos()
draw_list:AddRectFilled(p, p + ImVec2(100, 100), IM_COL32(255, 120, 60, 255), 12.0)
draw_list:AddCircleFilled(p + ImVec2(170, 50), 45, IM_COL32(80, 160, 255, 255))
draw_list:AddLine(p + ImVec2(0, 120), p + ImVec2(220, 120), IM_COL32(255, 255, 0, 255), 2.0)
ImGui.Dummy(ImVec2(220, 130)) -- reserve the space so the window sizes/scrolls correctly

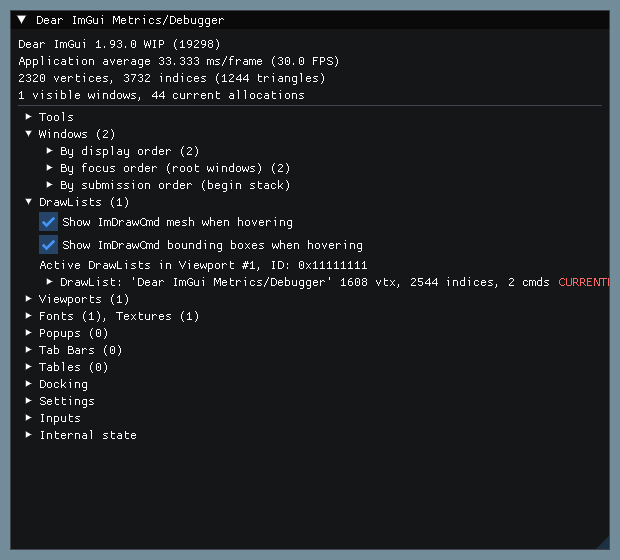

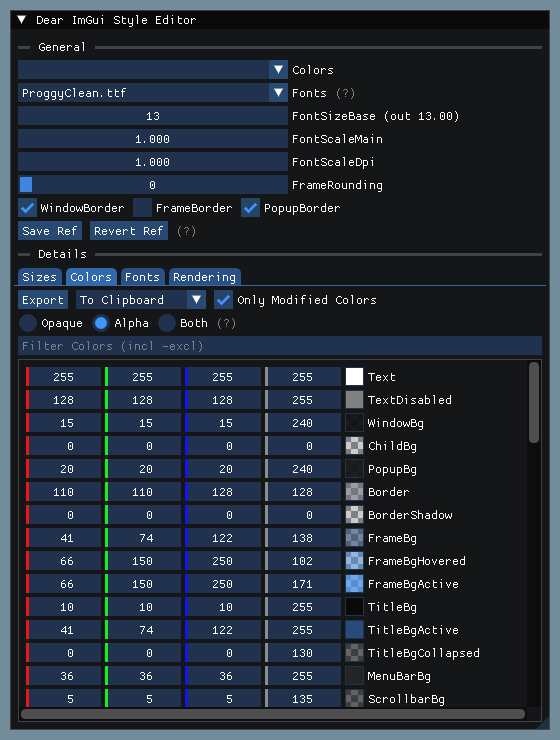

The Style Editor (ImGui.ShowStyleEditor()) and the Metrics/Debugger (ImGui.ShowMetricsWindow()):

Getting Started & Integration (Roblox)

Build the module: python3 tools/bundle.py writes build/ImGui.luau (--no-demo leaves the demo out).
Sync with Rojo: default.project.json puts the module in ReplicatedStorage.ImGui and the example LocalScript in StarterPlayerScripts.
A minimal LocalScript (full version: examples/example_roblox/main.client.luau):

local ReplicatedStorage = game:GetService("ReplicatedStorage")
local RunService = game:GetService("RunService")
local G = require(ReplicatedStorage:WaitForChild("ImGui"))
local ImGui, ImGui_ImplRoblox = G.ImGui, G.ImGui_ImplRoblox

ImGui.CreateContext()
local io = ImGui.GetIO()
io.ConfigFlags = bit32.bor(io.ConfigFlags, G.ImGuiConfigFlags.NavEnableKeyboard, G.ImGuiConfigFlags.DockingEnable)
ImGui_ImplRoblox.Init()            -- Init(parent, render_scale): parent defaults to PlayerGui

RunService.Stepped:Connect(function()
    ImGui_ImplRoblox.NewFrame()
    ImGui.NewFrame()

    ImGui.ShowDemoWindow()
    -- ... your windows ...

    ImGui.Render()
    ImGui_ImplRoblox.RenderDrawData(ImGui.GetDrawData())
end)

Backend options:

Call	Effect
`ImGui_ImplRoblox.Init(parent, render_scale)`	`render_scale` = your OS display scale renders at physical-pixel resolution (crisper, same size as desktop imgui).
`ImGui_ImplRoblox.SetRenderScale(scale)`	Change it at runtime.
`ImGui_ImplRoblox.SetRenderRate(hz)`	Max tile redraws per second (default 60, `0` = every frame). Your code still runs every frame.
`ImGui_ImplRoblox.SetBusyRenderRate(hz)`	Optional lower redraw rate while scrolling, resizing or moving windows (default off).
`ImGui_ImplRoblox.SetProfiling(true)`	MicroProfiler (Ctrl+F6) labels for every backend stage.
`ImGui_ImplRoblox.AddFile(path, bytes)`	Register a file (e.g. a `.ttf`) so `io.Fonts:AddFontFromFileTTF(path, size)` can load it.

Fonts: ProggyClean (default), ProggyTiny, ProggyForever, Cousine, DroidSans, Karla and Roboto are embedded from fonts/:

io.Fonts:AddFontDefault()
io.Fonts:AddFontFromFileTTF("fonts/Roboto-Medium.ttf", 16.0)

Backends

Backend	File	Build	Renderer	Example
Roblox (primary)	backends/imgui_impl_roblox.lua	`python3 tools/bundle.py`	Luau software rasterizer into EditableImage tiles	examples/example_roblox
LÖVE 11.x	backends/imgui_impl_love.lua	`python3 tools/bundle.py --target love`	GPU, one `Mesh` per draw list	examples/example_love

A backend implements the usual Dear ImGui contract (Init, NewFrame, RenderDrawData, input → io:Add*Event, texture updates via ImTextureData). Adding another Lua host means a new backends/imgui_impl_<name>.lua plus a --target in tools/bundle.py.

LÖVE

The same sources also build for LÖVE (LuaJIT), with a GPU renderer in backends/imgui_impl_love.lua:

python3 tools/bundle.py --target love      # -> build/imgui_love.lua (LÖVE backend + shims from the LÖVE backend)
love examples/example_love

Roblox stays the primary target: the Roblox build is untouched by this (no shims, @native kept); the LÖVE build strips @native and adds small bit32/buffer/utf8/table shims (the COMPAT section of backends/imgui_impl_love.lua). tools/test/love/run.sh checks that LuaJIT produces exactly the same draw data as Luau.

examples/example_shared/app.lua is one UI that runs unchanged on both: roblox.client.luau (Rojo: examples/example_shared/default.project.json) and main.lua (love examples/example_shared) are the only platform code. Write shared UI code in plain Lua 5.1 syntax (no +=, //, continue).

Differences from C++ Dear ImGui

The API is the same function-for-function; these are the Luau-specific conventions:

C++	Luau
`bool* p_open`, `float* v`, `int* v`	Passed by value, the new value is returned.
`bool Checkbox(label, &v)`	`pressed, v = ImGui.Checkbox(label, v)`
`bool SliderFloat(label, &v, ...)`	`v, changed = ImGui.SliderFloat(label, v, ...)` (same for Drag/Input/Slider scalars)
`bool Combo(label, &idx, items)`	`idx, changed = ImGui.Combo(label, idx, { "a", "b" })`, 0-based index
`bool Begin(name, &open)`	`open, visible = ImGui.Begin(name, open)`
`float v[3]`, `ImVec4 col`	Arrays / `ImVec4` are edited in place (`DragFloat3`, `ColorEdit4`).
`char buf[256]`	`buf = ImGui.NewTextBuffer("text", 256)`, edited in place; `ImGui.TextBufferToString(buf)`
`ImGuiWindowFlags_MenuBar`	`ImGuiWindowFlags.MenuBar` (combine with `bit32.bor`)
`ImVec2 a + b`	Works (`ImVec2` has arithmetic metamethods); fields are `.x`, `.y`
`draw_list->AddRect(a, b, col, rounding, flags, thickness)`	`draw_list:AddRect(a, b, col, rounding, thickness, flags)`
`ImDrawList::VtxBuffer` (`ImDrawVert[]`)	One flat `buffer` (`VtxBuffer.Buf`, 36 bytes per vertex); read with `ImDrawVtx_Pos/ImDrawVtx_Col`.

All exported names (ImGui, ImVec2, ImVec4, IM_COL32, every ImGui*Flags enum, …) are fields of the table returned by require.

Performance (Roblox)

Measured headless (Luau CLI, Studio-like native code generation), demo window open:

Scenario	Frame time
Demo idle, Widgets > Basic open	~1.3 ms
Scrolling the same	~1.9 ms
Dragging a window	~0.4 ms, no tile uploads
Whole demo open (every section)	~22 ms

Most of the remaining cost is widget logic (your UI code and Dear ImGui's per-widget work), which runs every frame by design. Use ImGuiListClipper for long lists.

Testing

tools/test/run.py runs any LocalScript headless against a mocked Roblox (tools/test/roblox_mock.luau):

python3 tools/bundle.py
python3 tools/test/run.py --main tools/test/scripts/t_tables.luau --frames 120 --quiet --roblox

t_drawhash / t_colors_hash: checksums of all draw data; internal rewrites must keep them identical.
t_composite: composites the backend's tiles like Roblox does, to compare pixels between versions.
t_click_fuzz, t_apps, t_dock*, t_tables, …: behaviour tests.
tools/test/love/run.sh: builds the LÖVE target, checks LuaJIT produces the same draw checksums as Luau, runs the LÖVE examples headless. --profile + tools/test/prof.py for profiling.

See docs/PORTING.md for the porting rules.

Not ported yet

Multi-select / box-select, typing-select, the Assets Browser example, the Item Picker and a few smaller items. The full list is in docs/TODO.txt.

FAQ

Why does this exist? How is it different from Iris? Iris is an immediate-mode UI library inspired by Dear ImGui: it keeps a similar API but builds its widgets from regular Roblox GUI Instances. This project is a near line-by-line port of Dear ImGui itself (docking branch), with Roblox as a rendering backend. In practice:

Behaviour and features are Dear ImGui's. Docking, tables (sorting, resizing, reordering, freezing), multi-font atlases, the full Style Editor, Metrics/Debugger, ID Stack tool, drag & drop, popups/modals, keyboard navigation, ImDrawList custom drawing, ListClipper: the same code paths as upstream, not re-implementations.
Upstream knowledge transfers. The wiki, FAQ, GitHub issues, imgui_demo.cpp and any C++ snippet map almost 1:1 to Luau, and so does the visual result (fonts, rounding, anti-aliasing).
More control. Everything Dear ImGui exposes is available: internal APIs (ItemAdd, ButtonBehavior, BeginGroup…) to write your own widgets, full style variables and colours, the draw list, docking builder, settings serialization.
Portable. The same library also runs on LÖVE, and UI code written against it can run on both.

What's worse than Iris? Performance, mainly. Iris lets the Roblox engine render native Instances on the GPU; this port rasterizes on the CPU in Luau and uploads pixels. The backend avoids most work (static UI and window moves cost almost nothing, scrolling only draws new rows), but large redraws (resizing a big window, heavy animated content) cost frame time Iris doesn't pay, and every frame runs Dear ImGui's full logic in Luau. Other trade-offs: EditableImage memory, text/visuals don't use Roblox's own UI features (rich text, localization, UI scaling rules), and input/clipboard need workarounds (Active tiles, the hidden TextBox). If you want cheap, Roblox-native widgets, Iris is a good choice; if you want Dear ImGui, this is it.

Does it work on mobile / console? On Roblox, rendering does. The backend currently handles mouse and keyboard input only; touch and gamepad are not wired up yet.

Does my UI code run when nothing changes? Yes, every frame, like Dear ImGui. Only rendering is skipped for unchanged content.

Can I use it for player-facing UI? You can, but like upstream it is designed for tools: programmer-oriented, dense, and not themed for end users.

Where is the documentation? Upstream's docs apply: the wiki, the FAQ and the comments in imgui.h. The demo is the best reference.

Credits

Dear ImGui is developed by Omar Cornut and every direct or indirect contributor. This repository is an unofficial port and is not affiliated with the Dear ImGui project.

This port started from GrayWolf64/imgui-lua, a Lua port of Dear ImGui, and was extended from there to the docking branch, Roblox and LÖVE.

Embeds stb_truetype, stb_textedit, stb_rectpack by Sean Barrett (public domain / MIT), ported to Luau.

Fonts: ProggyClean, ProggyTiny, ProggyForever by Tristan Grimmer; Cousine, DroidSans, Karla, Roboto under their respective licenses (Apache 2.0 / SIL OFL), as distributed in upstream's misc/fonts/.

License

Dear ImGui is licensed under the MIT License, see LICENSE.txt for more information. This port is distributed under the same license.
